CAROLINE
SCHOENEWALD


DRG DISH
WHERE
RNEL
WHEN
2019-Current

In an effort to gain a fuller understand of pain and nociceptors, our lab is involved with a grant to assemble and grow neuron cultures and assess injury-induced changes in gene expressions and protein/metabolite profile in tissue compartments.
​
Under stress conditions neurons will grow and forced through micro-channels to innervate tissue which is normally found in the knee joint.
​
My role in early stage development is to design an embedded microcontroller chamber, or the DRG Dish.
​
Design iterations
many iterations were made to this design, but here are some key stages during the process
Version 1.0

Version 2.0

Version 3.0

Version 4.0


Version 5.0
Version 3.0 - Gen 1
UCLA Silicon Probes


18-8 Stainless Steel Hex Head Screw
Silicon Adhesive
High-Temperature Silicon Rubber Sheet
Zinc-Plated Steel Wing Nut

Intan Technologies Inc.
128-Channel Recording Headstage

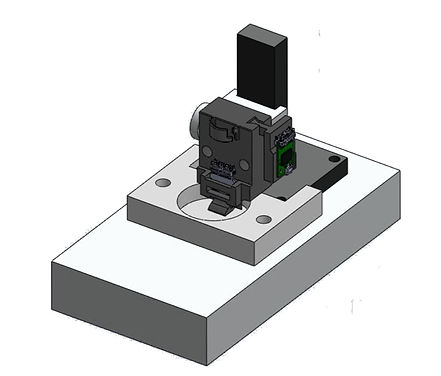

version 5.0 - Gen 2
Recording capabilities and format changed prompting the new design reflected in GEN 2

Linear Slide Adjustment Knob
Wire Bundle

Recording Electrodes
Linear Slide
Cambridge NeuroTech Recording Probe

Intan Technologies Inc.
64-Channel Recording Headstage
